| Tên thương hiệu: | HUATEC |
| Số mô hình: | VT12-1550T |
| MOQ: | 1 CÁI |
| Chi tiết đóng gói: | Gói xuất tiêu chuẩn |
| Điều khoản thanh toán: | T/T, PayPal, Western Union |
It is widely used in the field of mechanic, electronic, rubber industry, and college, research institute and the measuring checking department for checking product quality. VT12 can inspect all kinds of surface and outline of complicated work-pieces such as Template, Pressing work-pieces, Cam, Screw thread, Gear, etc.
|
The Technical Specification of Profile Projector VT12 series (Unit: mm)
|
||||
|
1, Model
|
VT12-1550T
|
VT12-2010T
|
||
|
2, Stage Travel: X and Y-axis
|
150×50
|
200×100
|
||
|
3, Metal stage dimension
|
340×152
|
350×170
|
||
|
4, Glass Stage Dimension
|
196×96
|
246×120
|
||
|
5, Resolution of X and Y-scale
|
0.001
|
|||
|
6, Travel: Z axis
|
90 (for focusing)
|
|||
|
7, Screen diameter
|
Ø308, effective range≥Ø300mm
|
|||
|
8, Rotary range of screen
|
0～360°
|
|||
|
9 Resolution of Rotary Indicator
|
1'/0.01°
|
|||
|
10, Accuracy
|
≤4+L/50 (um)
|
|||
|
11, Objective magnification
|
10X(Std.)
|
20X(Opt.)
|
50X(Opt.)
|
100X(Opt.)
|
|
12, Object view-field
|
30
|
15
|
6
|
3
|
|
13, Work distance
|
78.33
|
44.30
|
24.50
|
25.30
|
|
14, Data Processor
|
Multifunctional LED Digital Readout DC 3000
|
|||
|
15, Instrument Illumination
|
Surface and Contour Illumination: 24V/150W halogen lamp
|
|||
|
16, Power
|
110V/ 220V(AC), 50/60HZ
|
|||
|

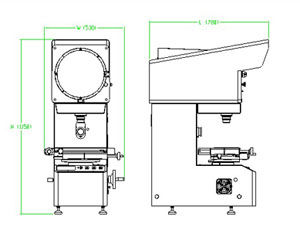

17, Dimension (D× W × H)
|
770 × 550 × 1100/770 × 810 × 1120
|
|||
|
18, Instrument Weight
|
130Kg
|
170Kg
|
130Kg
|
170Kg
|
Optional Accessories:
Working Stand; Objective 20X, 50X, 100X; Rotary table; mini-printer; Over chart and measuring software
