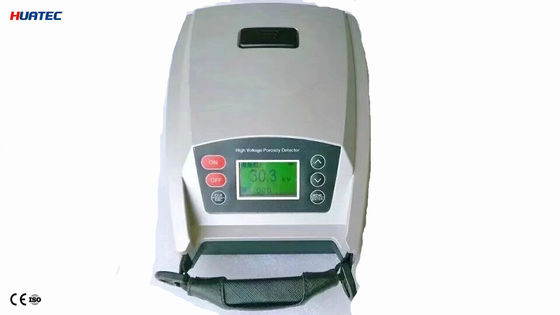

HUATEC HD-105 High voltage Pinhole Detector / Holiday Detector

High Voltage Pinhole Detector Holiday Detector Porosity Holiday Detector Coating Detector



High Voltage Pinhole Detector Holiday Detector Porosity Holiday Detector Coating Detector 0



Product introduction

HUATEC HD-105 High voltage Pinhole Detector is intelligence pulsed high voltage protecting coating quality detector. It install anti-jamming intelligent chip, anti-jamming LED screen and brand new digital control circuit to make a accurately high voltage output ±(0.1KV+3% reading)

It can adjust its value of voltage according to the thickness of protecting coating.

HD-105 use lithium battery for power source, it is also can be used in field.

Battery can be replaced by customer themselves, useful for long time testing work in field.



Theory

When high voltage probe brushed pass non conductive coating, If the coating is too thin or metal has leakage or pinhole, the air gap will be punctured and produce spark discharge when pulse high voltage. At same time, detector will record leak number.



Application

The equipment design of HD-105 is advanced, stable and reliable, which can be widely used in chemical industry, oil, rubber and enamel, so it is an essential tool used to detect metal anti-corrosion coating quality.

Parameter

Parameter
Test voltage range 0.6KV～30KV
Thickness range 0.05～10mm
High voltage output Pulse
Voltage display 3 digit
Resolution 0.1KV
Voltage precision ±(0.1kv+3%)
Max leak record 999 maximum
Way of alarming Headphone buzzer and light
Shutdown Auto and Manual
Display 128*64 LED screen with backlight
Power ≤6W
Size 240mm*165mm*85mm
Battery 12V 4400mA
Working time ≥12 hours(Max voltage)
Charging time ≈4.5 hours
Voltage of adapter Input AC 100-240V
Output 12.6V 1A
Probe wire Close to 1.5m
Earth lead wire 2*5m black/black
Fuse

1A



High Voltage Pinhole Detector Holiday Detector Porosity Holiday Detector Coating Detector 1High Voltage Pinhole Detector Holiday Detector Porosity Holiday Detector Coating Detector 2



Form 1 Test voltage form

Material Thickness
(mm)		 Test
voltage
(KV)		 Note
Coal tar
epoxy		 0.2
0.4
0.6
0.8		 4~5KV
Or self
setting		 Follow the
standard
law if
exist.
Petroleum
Asphalt		 2 3
5.5
7 9		 11
15
18
20
24
Polyethyle
ne Tape		 Basic on 3249TC=V formula
V: voltage TC: thickness of coating
Follow SY4014-92 acceptance
specification
Glass
lining		 Close to 8KV~20KV
Other
anti-corro
sion
material		 According to voltage or the
insulation performance of the
material
Note:This is for your reference only.


Form 2 The thickness of coating and reference voltage

Thickness
(um)		 Voltage
(KV)		 Thickness
(um)		 Voltage
(KV)
50 0.7 1250 5.5
100 1.0 1500 6.3
150 1.2 2000 8.0
200 1.5 2500 9.6
250 1.7 3000 11.1
300 2.0 3500 12.6
350 2.2 4000 14.1
400 2.4 5000 17.1
500 2.9 6000 20.1
600 3.3 8000 25.7
800 4.0 10000 30
1000 4.7

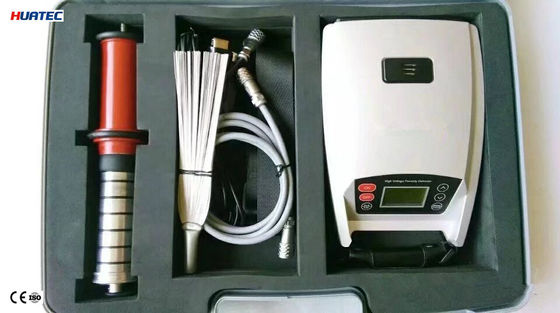

Standard Accessory:
1. HD-105 detector
2. High voltage probe
3. Probe wire

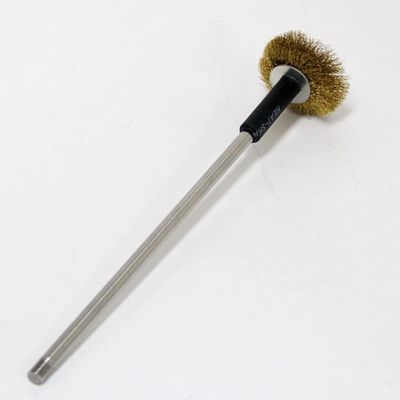

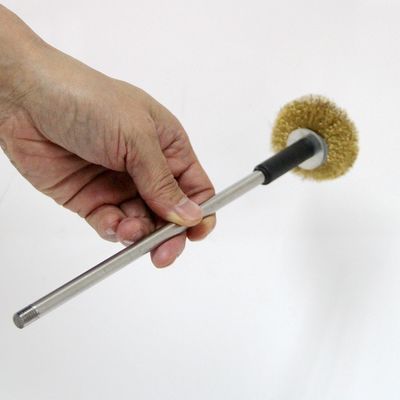

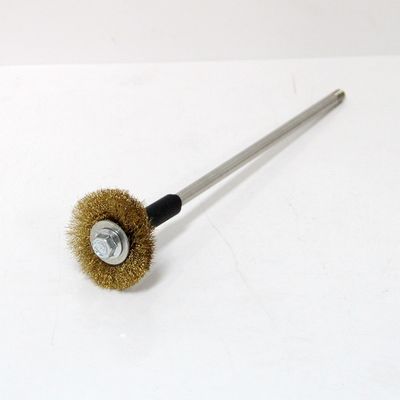

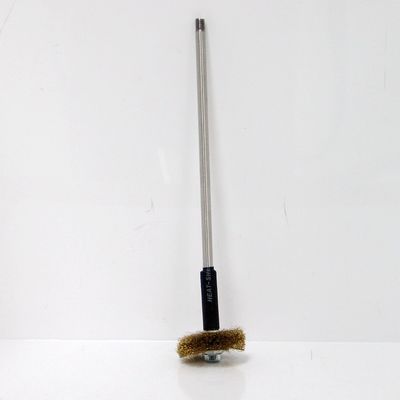

4. Brush
5. Earth lead wire
6. Charger
7. Carry belt
8. Magnetic earthing rod
9. ABS suitcase
10. Instruction, warranty card and fuse

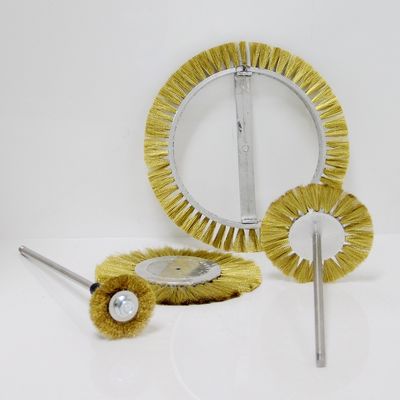

Optional accessory:

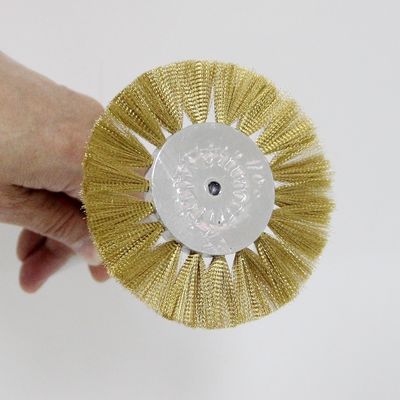

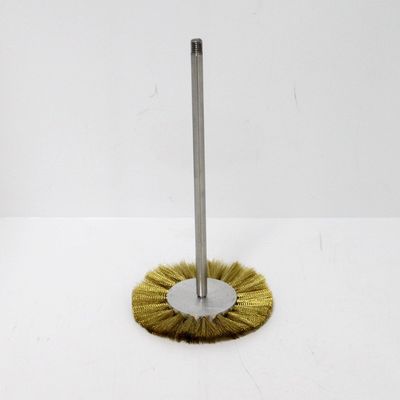

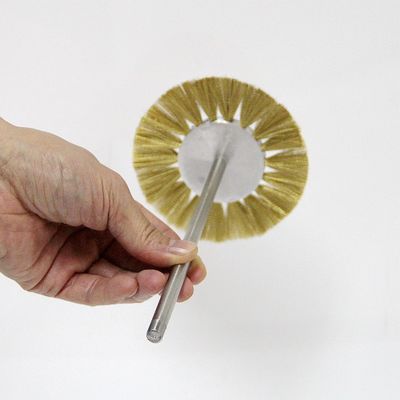

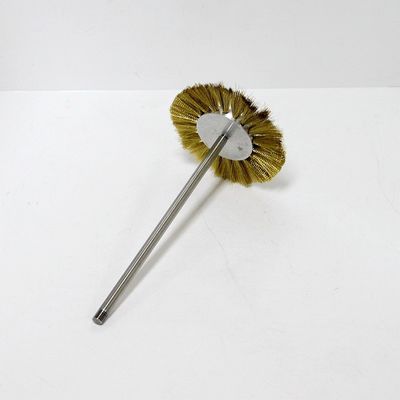

1. Flat brush
2. Conductive rubber brush
3. Earthing rod
4. Headphone

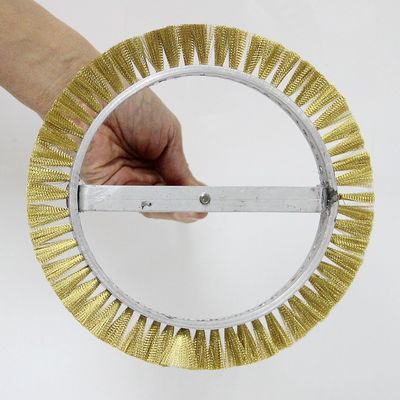

5. Customized outer and inner size electrode
